高空作業臺 首頁 > 產品展示 > 高空作業臺

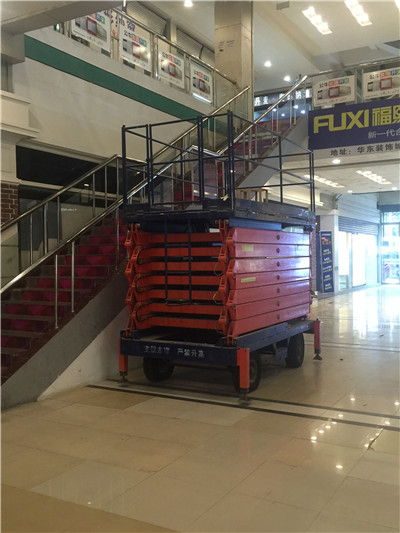

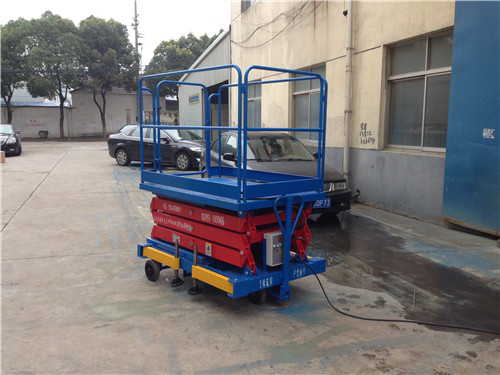

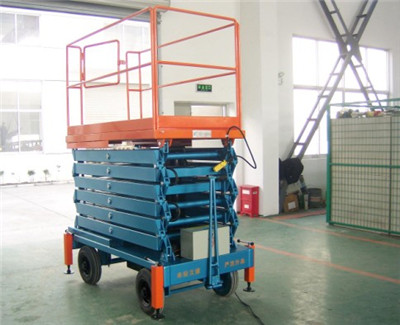

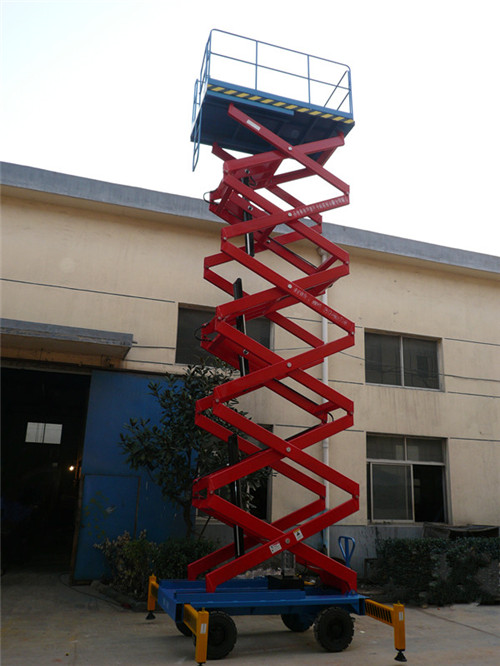

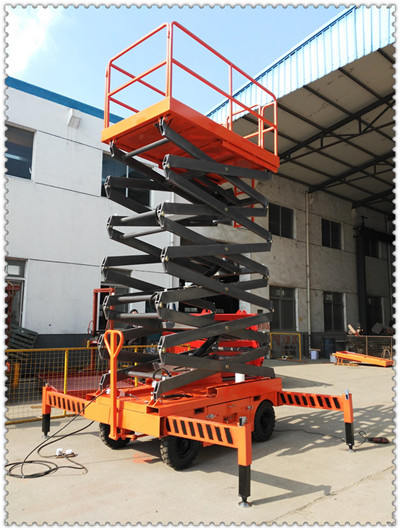

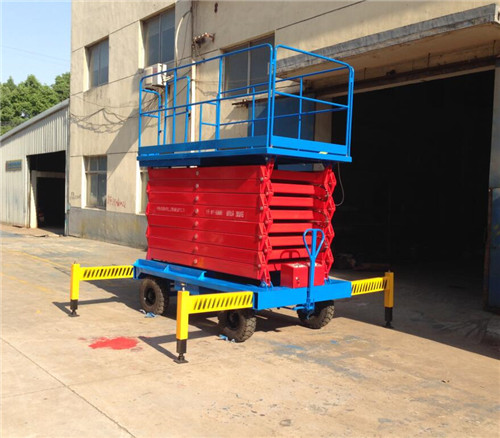

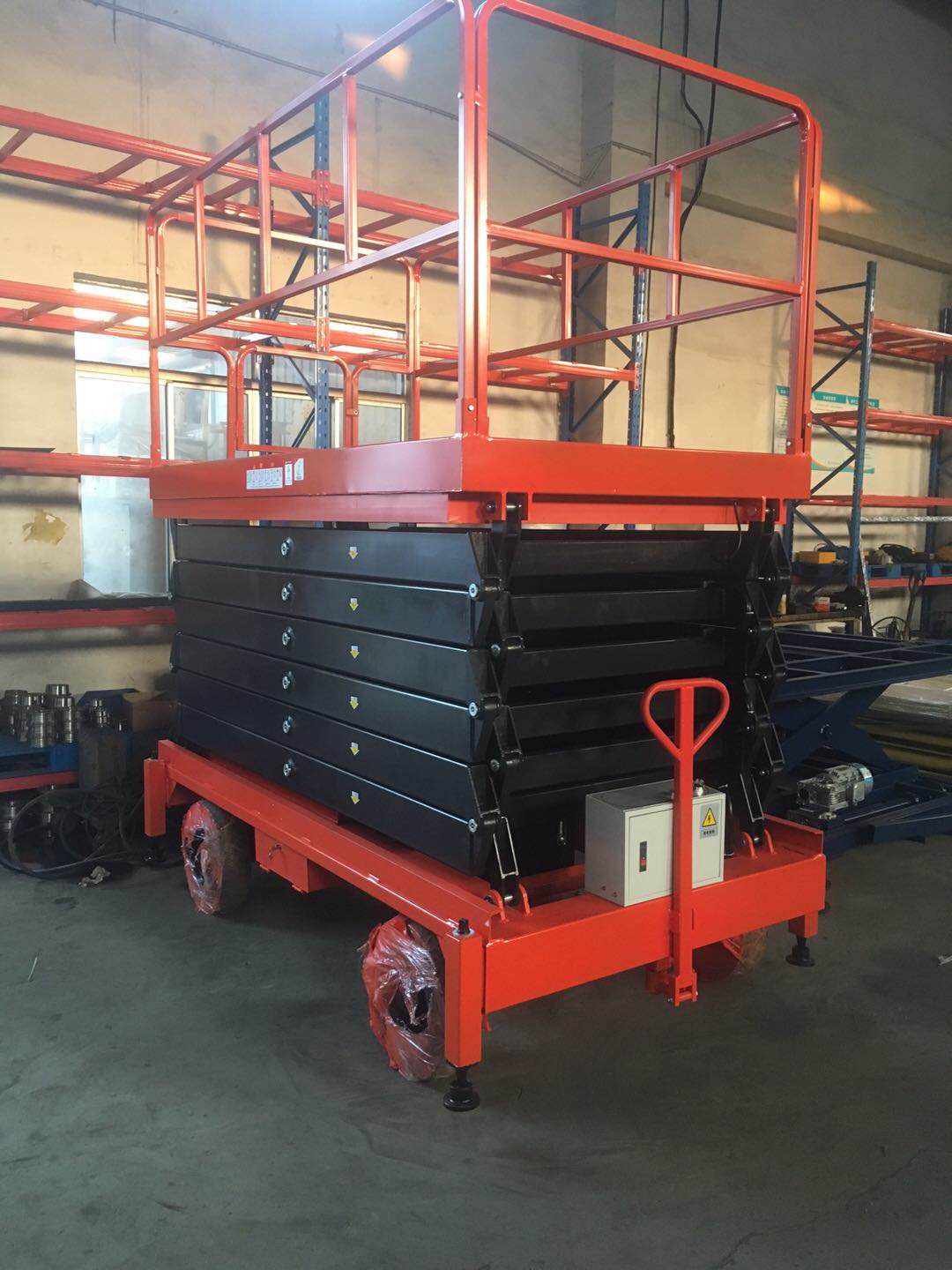

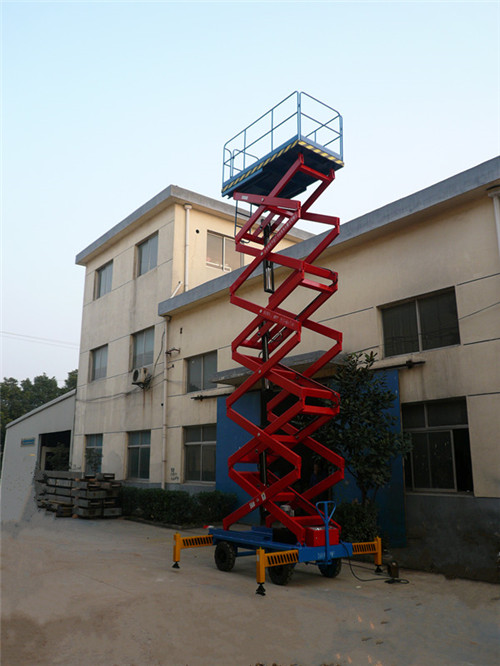

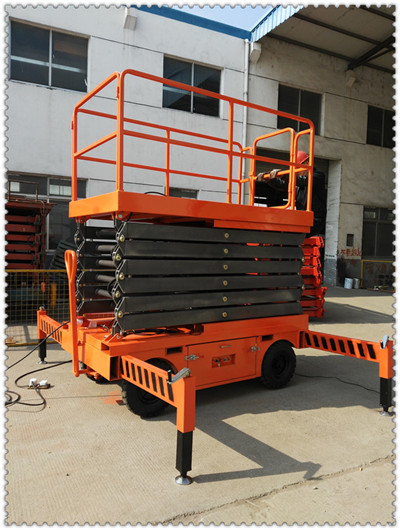

該產品適用于各行業高空設備安裝、檢修等高空作業。它采用剪叉式機械結構,使升降臺起升后有較高的穩定性。
參數表:
Description type | Capacity | Platform | Own height | Table Height | Voltage Power | Time | Weight |
型號 | 負荷能力 | 平臺尺寸 | 自身高度 | 平臺高度 | 電壓/功率 | 上升時間 | 自重 |
Kg | L長*W寬(MM) | (MM) | (MM) | V/kw | S | Kg | |
移動式高空作業平臺 (電動升降、人工推行) | |||||||
SJY0.5-3 | 500 | 1300*700 | 850 | 3000 | 380V/1.1 | 28 | 400 |
SJY0.5-4.5 | 500 | 1300*850 | 950 | 4500 | 380V/1.1 | 43 | 620 |
SJY0.3-6 | 300 | 1800*900 | 1050 | 6000 | 380V/1.5 | 50 | 900 |
SJY0.5-6 | 500 | 1800*900 | 1050 | 6000 | 380V/1.5 | 55 | 950 |
SJY0.3-7.5 | 300 | 1800*1000 | 1150 | 7500 | 380V/1.5 | 60 | 1000 |
SJY0.5-7.5 | 500 | 1800*1000 | 1250 | 7500 | 380V/1.5 | 65 | 1100 |
SJY0.3-9 | 300 | 1800*1000 | 1500 | 9000 | 380V/2.2 | 70 | 1200 |
SJY0.5-9 | 500 | 1800*1000 | 1500 | 9000 | 380V/2.2 | 70 | 1250 |
SJY0.3-11 | 300 | 2100*1200 | 1550 | 11000 | 380V/2.2 | 70 | 1320 |
SJY0.5-11 | 500 | 2100*1200 | 1550 | 11000 | 380V/2.2 | 75 | 1360 |
SJY0.3-12 | 300 | 2100*1200 | 1750 | 12000 | 380V/3 | 80 | 1500 |
SJY0.5-12 | 500 | 2500*1400 | 1850 | 12000 | 380V/3 | 85 | 2200 |
SJY0.3-14 | 300 | 2500*1400 | 2000 | 14000 | 380V/4 | 100 | 2300 |
SJY0.5-14 | 500 | 2500*1400 | 2000 | 14000 | 380V/4 | 110 | 2400 |
SJY0.3-16 | 300 | 2500*1400 | 2180 | 16000 | 380V/4 | 120 | 3000 |
SJY0.5-16 | 500 | 2500*1500 | 2250 | 16000 | 380V/5 | 145 | 3200 |
SJY1-6 | 1000 | 1800*1000 | 1500 | 6000 | 380V/3 | 80 | 1300 |
SJY1-9 | 1000 | 1900*1200 | 1800 | 9000 | 380V/3 | 108 | 1750 |
SJY1-11 | 1000 | 2200*1200 | 1750 | 11000 | 380V/3 | 115 | 2000 |
SJY1-12 | 1000 | 2500*1500 | 1940 | 12000 | 380V/4 | 120 | 2800 |
SJY1-14 | 1000 | 2500*1500 | 2100 | 14000 | 380V/4 | 135 | 3150 |
SJY2-12 | 2000 | 2500*1500 | 2100 | 12000 | 380V/4 | 150 | 3800 |
